UNEQUAL TEE PIECES

Unequal tee are used in design of columns & at junction of pipelines of different nominal size.

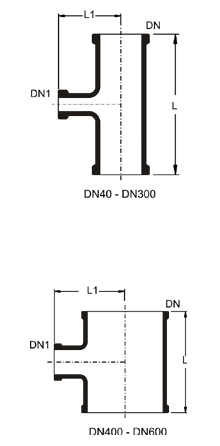

DN	DN1	L	L1	Reference
40	25	200	75	NSPTU 1.5/1
50	25	200	80	NSPTU 2/1
50	40	200	100	NSPTU 2/1.5
80	25	250	100	NSPTU 3/1
80	40	250	115	NSPTU 3/1.5
80	50	250	115	NSPTU 3/2
100	25	250	110	NSPTU 4/1
100	40	250	125	NSPTU 4/1.5
100	50	250	125	NSPTU 4/2
100	80	300	150	NSPTU 4/3
150	25	250	150	NSPTU 6/1
150	40	250	150	NSPTU 6/1.5
150	50	250	150	NSPTU 6/2
150	80	300	175	NSPTU 6/3
150	100	300	200	NSPTU 6/4
225	25	300	185	NSPTU 9/1
225	40	300	185	NSPTU 9/1.5
225	50	300	190	NSPTU 9/2
225	80	300	210	NSPTU 9/3
225	100	450	250	NSPTU 9/4
225	150	450	275	NSPTU 9/6
300	25	400	230	NSPTU 12/1
300	40	400	230	NSPTU 12/1.5
300	50	400	230	NSPTU 12/2
300	80	400	275	NSPTU 12/3
300	100	400	275	NSPTU 12/4
300	150	450	300	NSPTU 12/6
300	225	600	300	NSPTU 12/9
400	40	400	275	NSPTU 16/1.5
400	50	400	275	NSPTU 16/2
400	80	400	300	NSPTU 16/3
400	100	400	300	NSPTU 16/4
400	150	500	350	NSPTU 16/6
400	225	800	450	NSPTU 16/9
400	300	800	450	NSPTU 16/12
450	40	400	300	NSPTU 18/1.5
450	50	400	300	NSPTU 18/2
450	50	400	300	NSPTU 18/2
450	80	400	320	NSPTU 18/3
450	100	400	320	NSPTU 18/4
450	150	600	380	NSPTU 18/6
450	225	800	400	NSPTU 18/9
450	300	800	400	NSPTU 18/12
600	100	600	450	NSPTU 24/4
600	150	600	450	NSPTU 24/6
600	225	800	525	NSPTU 24/9
600	300	800	525	NSPTU 24/12
