REDUCERS

Products Details

There are basically two types of reducers, concentric & eccentric. Concentric reducers are used in vertical installations. Eccentric reducers are used in horizontal pipelines where there is change of bore to enable complete drainage of material without any hold up.

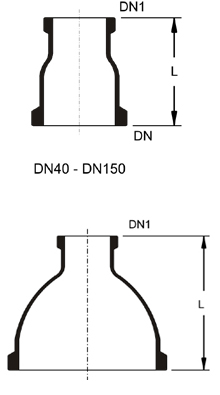

Concentric Reducers

DN	DN1	L	Reference
40	25	100	NSPR 1.5/1
50	25	100	NSPR 2/1
50	40	100	NSPR 2/1.5
80	25	125	NSPR 3/1
80	40	125	NSPR 3/1.5
80	50	125	NSPR 3/2
100	25	150	NSPR 4/1
100	40	150	NSPR 4/1.5
100	50	150	NSPR 4/2
100	80	150	NSPR 4/3
150	25	200	NSPR 6/1
150	40	200	NSPR 6/1.5
150	50	200	NSPR 6/2
150	80	200	NSPR 6/3
150	100	200	NSPR 6/4
225	25	250	NSPR 9/1
225	40	250	NSPR 9/1.5
225	50	250	NSPR 9/2
225	80	250	NSPR 9/3
225	100	250	NSPR 9/4
225	150	250	NSPR 9/6
300	25	300	NSPR 12/1
300	40	300	NSPR 12/1.5
300	50	300	NSPR 12/2
300	80	300	NSPR 12/3
300	100	300	NSPR 12/4
300	150	300	NSPR 12/6
300	225	300	NSPR 12/9
400	25	350	NSPR 16/1
400	40	350	NSPR 16/1.5
400	50	350	NSPR 16/2
400	80	350	NSPR 16/3
400	100	350	NSPR 16/4
400	150	350	NSPR 16/6
400	225	350	NSPR 16/9
400	300	350	NSPR 16/12
450	25	375	NSPR 18/1
450	40	375	NSPR 18/1.5
450	50	375	NSPR 18/2
450	80	375	NSPR 18/3
450	100	375	NSPR 18/4
450	150	375	NSPR 18/6
450	225	375	NSPR 18/9
450	300	375	NSPR 18/12
600	50	400	NSPR 24/2
600	100	400	NSPR 24/4
600	150	400	NSPR 24/6
600	225	425	NSPR 24/9
600	300	425	NSPR 24/12
600	450	475	NSPR 24/18

Ecentric Reducers

DN	DN1	L	L1	Reference
40	25	100	6	NSPRE 1.5/1
50	25	100	12	NSPRE 2/1
50	40	100	6	NSPRE 2/1.5
80	25	125	24	NSPRE 3/1
80	40	125	18	NSPRE 3/1.5
80	50	125	12	NSPRE 3/2
100	25	150	39	NSPRE 4/1
100	40	150	33	NSPRE 4/1.5
100	50	150	27	NSPRE 4/2
100	80	150	15	NSPRE 4/3
150	50	200	52	NSPRE 6/2
150	80	200	40	NSPRE 6/3
150	100	200	25	NSPRE 6/4

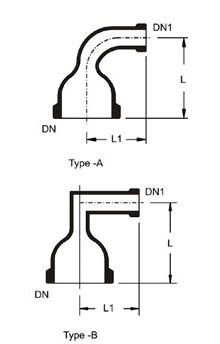

90° Bend Reducers

DN	DN1	L	L1	Type	Reference
40	25	150	125	A	NSPBR 1.5/1
50	40	150	150	A	NSPBR 2/1.5
80	50	150	150	A	NSPBR 3/2
100	50	200	150	B	NSPBR 4/2
100	80	200	175	B	NSPBR 4/3
150	50	200	150	B	NSPBR 6/2
150	80	250	175	B	NSPBR 6/3
225	80	250	175	B	NSPBR 9/3
300	80	300	175	B	NSPBR 12/3
300	150	350	250	B	NSPBR 12/6
